Paper Cup Machines

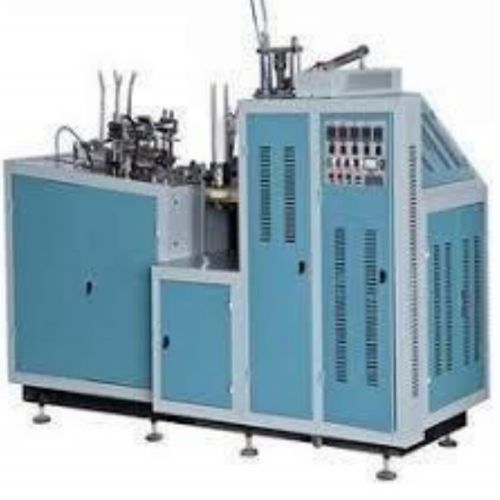

Leading Manufacturers, Exporters, Wholesaler, Trader and Importer of GI Paper Cup Making Machine and GI PC65 Fully Automatic High Speed Paper Cup Machine from Buxar.
| Business Type | Manufacturer, Supplier |
| Capacity | 55 - 65 Cups/min |
| Automation Grade | Fully Automatic |
| Power Consumption | 3.5 KW |
| Model Series | UW-PC60 High Speed |
| Cup Size Range | 45 Ml - 330 Ml |
| Machine Weight | 2000 Kg |
| Required Paper | Single Side Poly Coated (170-270 GSM) |
| Machine Dimension | 2700 X 1400 X 1900 Mm (LxWxH) |
| Control Protocol | PLC Digital Control |
| Sensors Count | 5 Point Array |
Key Features
Read More...
- Enhanced 2-ton rugged frame for noise-free operation
- Quality-tested gearbox for superior positioning and long-term timing accuracy
- Dual operating modes: Automatic and Manual for maintenance flexibility
- Advanced error reporting system for multi-function diagnostic detection
- Optimized sensor-based cut-off system reduces raw material wastage
- Full spare parts availability across India network
| Business Type | Manufacturer, Supplier |
| Capacity | 45 - 55 Cups/min |
| Power Consumption | 3.5 KW |
| Cup Size Capacity | 45 Ml - 330 Ml (Mould Exchange Required) |
| Automation Control | Program Logic Control Technology (PLC) |
| Machine Weight | 1800 Kg |
| Required Paper | Single Side Poly Coated (170-270 GSM) |
| Number Of Sensors | 4 |
| Machine Dimension | 2700 X 1400 X 1900 Mm (LxWxH) |
| Phase Support | Three Phase / Single Phase Customizable |
Key Features
Read More...
- Rugged heavy-duty frame structure reduces vibration and noise
- Indigenous Indexing gearbox (Made in India) for accurate timing
- Automatic Sensor Control System for release, wallpaper, and bottom paper detection
- Integrated Auto Stop function for fail-safe manufacturing
- Heat-treated and hardened sliding parts for 10+ years operational life
- High resale value even after 5 years of heavy usage
